Playground Safety Standards: EN 1176, EN 1177, ASTM F1487 and F1292 for Vietnamese Project Owners

A playground looks finished long before it is actually safe. Paint is dry, the slide shines, the surfacing is poured, and the contractor asks for sign-off. This is the moment a Vietnamese project owner has the most leverage and usually uses the least of it. Four documents decide whether the equipment is genuinely safe: EN 1176, EN 1177, ASTM F1487 and ASTM F1292.

What each standard governs

Standard	What it controls
EN 1176-1	Structural integrity, entrapment, protrusions, free space, falling space, guardrails, marking
EN 1176-2 to -11	Swings, slides, runways, carousels, rocking equipment, installation and inspection
EN 1177	Test method for critical fall height of impact attenuating surfacing
ASTM F1487	US equivalent of EN 1176: use zones, entrapment, protrusion, age separation
ASTM F1292	Lab and field impact attenuation testing of surfaces

Most equipment made in or imported into Vietnam is declared to EN 1176. Make EN 1176 plus EN 1177 the contractual baseline and accept ASTM F1487 with F1292 only as a coherent alternative package, never as a partial substitute.

Critical fall height and how it is tested

Critical fall height (CFH) is the maximum free height of fall for which a surface is proven to give acceptable impact attenuation. Free height of fall is measured from the highest part a child can normally stand or sit on down to the surface below.

EN 1176-1 caps free height of fall at 3000 mm. Above 600 mm an impact attenuating surface is mandatory. Below 600 mm grass may be accepted in principle, but in a wet tropical climate compacted soil degrades fast.

EN 1177 and ASTM F1292 drop an instrumented hemispherical headform from progressively increasing heights. Two criteria must be met:

• HIC, the Head Injury Criterion, must not exceed 1000
• g-max, peak deceleration, must not exceed 200 g

The greatest drop height at which both limits still hold becomes the certified CFH, rounded down in 100 mm or 250 mm steps. A tile rated 1.8 m CFH is legitimate only where free height of fall does not exceed 1800 mm. ASTM F1292 also requires field testing of installed surfacing, a more useful figure because it reflects the real compaction, adhesive and sub-base on site.

The most common Vietnamese failure

A supplier presents a report for a 50 mm rubber tile tested on concrete, then installs the same tile on an unstabilised base, or installs 30 mm tiles instead. The certificate becomes meaningless. Insist that tested thickness, tested base and tested product code match what is physically on site.

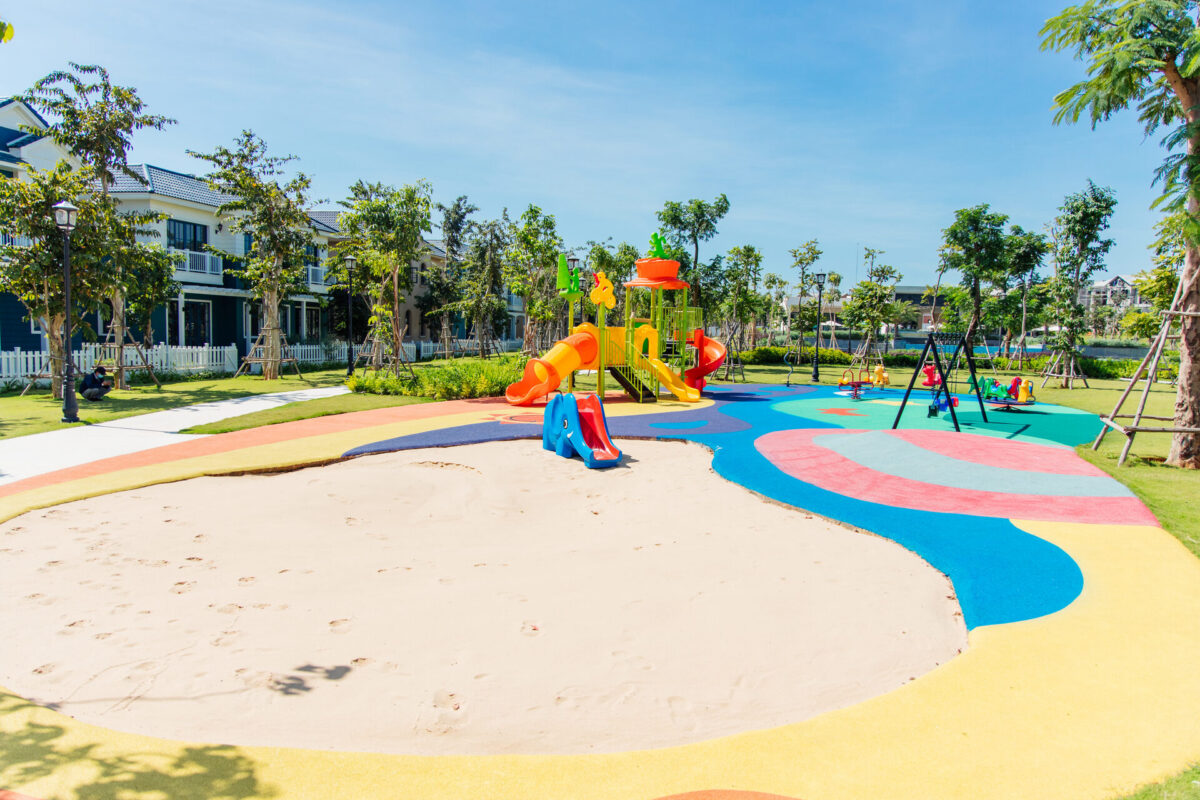

Free space and falling space

Free space is the volume a user occupies while moving in, on or through the equipment. Falling space is the area a user may fall onto from an elevated part.

• Up to 1500 mm free height of fall, falling space extends at least 1500 mm horizontally
• Above 1500 mm the extent grows per the EN 1176-1 formula, roughly two thirds of the free height of fall plus 500 mm
• Swings need enlarged falling spaces calculated from seat travel
• Falling spaces of adjacent items must not overlap above 1500 mm

Nothing may sit inside a falling space: no kerb, tree stump, drainage grating, bench or concrete footing edge. This is where compact Vietnamese podium and rooftop play areas most often fail. Check with a tape measure, not a drawing.

Entrapment: the millimetre figures that matter

Entrapment causes the most serious playground injuries. EN 1176-1 uses probe testing rather than judgement, and the numbers are absolute.

• Head and neck: a rigid opening must either refuse the small 89 mm probe or fully admit the large 157 mm probe. Any gap between 89 mm and 157 mm is forbidden
• V shaped openings: wider than 230 mm at the reference plane, or narrower than 89 mm at the relevant depth
• Finger entrapment: rigid openings between 8 mm and 25 mm are prohibited
• Clothing and toggle entrapment: slots on slides, poles and platforms above 1200 mm must be checked with the toggle and chain probes
• Swing chain links must not open gaps larger than 8 mm at any point in the cycle
• Foot entrapment: walking surface openings must not admit a 30 mm probe unless they fully admit the larger foot probe

ASTM F1487 follows similar logic with 3.5 in (89 mm) and 9 in (229 mm) torso and head templates. Manufacturers such as WINAM build these probe checks into production tooling so geometry cannot drift between batches.

Protrusion and entanglement

Any bolt end projecting more than 8 mm beyond the nut must be capped with a permanently fixed dome cap. Sharp edges need a radius of at least 3 mm and open ended tubes must be plugged. No hook, open S ring or rope-to-fitting gap may catch a drawstring or hood, and the slide chute must have no fixing heads inside the sliding surface.

Materials and corrosion in a tropical climate

These standards were written for temperate Europe. Ho Chi Minh City, Da Nang and coastal projects at Nha Trang or Phu Quoc are far more aggressive: 80 percent relative humidity, intense UV, salt spray and daily thermal cycling.

• Steel: hot dip galvanised to ISO 1461, 55 to 85 microns depending on section thickness, then polyester powder coating. Painted-only steel is unacceptable within 5 km of the sea
• Fixings: A2 stainless inland, A4 (316) stainless on coastal sites
• Plastics: rotomoulded LLDPE or HDPE panel with UV stabiliser and a documented UV warranty of at least 5 years
• Timber: pressure treated to the appropriate use class, or avoided in high termite areas
• Surface temperature: dark rubber and dark metal chutes get dangerously hot under Vietnamese sun

Certification documents to demand

• Full test report to EN 1176-1 and the relevant part, from an accredited third party lab such as TUV SUD, TUV Rheinland, Intertek or SGS, with the model number visible
• EN 1177 or ASTM F1292 report for the exact surfacing, stating tested thickness, tested base and certified CFH
• Post installation field impact test where CFH exceeds 1500 mm
• Material certificates: steel mill certificate, galvanising thickness report, powder coating spec, UV stabiliser data sheet
• RoHS or equivalent statement on heavy metals in coatings
• Installation and inspection manual in Vietnamese, per EN 1176-7
• As built drawings showing free space and falling space envelopes
• Warranty terms separating structure, coating and moving parts

Domestic manufacturers, WINAM among them, should be able to produce both the third party report and the production control records linking a batch to that report.

Handover acceptance checklist

Hand this list to the contractor before mobilisation, not after installation. Every line is pass or fail, recorded with a photograph.

• Product codes on site match the test reports, item by item
• Free height of fall measured on site for every elevated element, in millimetres
• Installed surfacing thickness and CFH equal to or greater than the measured free height of fall
• Falling space clear of obstacles for the full required radius, with no overlaps above 1500 mm
• Head probe test at every rigid opening: no gap between 89 mm and 157 mm
• Finger probe test: no rigid opening between 8 mm and 25 mm
• All bolt ends capped, projections under 8 mm, edges radiused 3 mm or more
• Footings buried below surfacing level, no concrete visible in the impact area
• Guardrails above 600 mm platform height and barriers above 1000 mm for the relevant age group
• Galvanising and coating verified by certificate and thickness gauge spot check
• Drainage working, no standing water on or under the surface
• Age group signage installed and legible in Vietnamese
• Operation and maintenance manual handed over with inspection schedule

Inspection regime after handover

EN 1176-7 defines three levels of inspection, and the owner carries this duty once handover is complete.

• Routine visual inspection: daily to weekly for heavily used sites such as schools and apartment podiums
• Operational inspection: every 1 to 3 months, checking stability, wear, fixings and moving parts
• Annual main inspection: every 12 months by a competent independent inspector, covering foundations, corrosion and structural condition

Keep a written log. After an accident, that log is the evidence the operator discharged its duty of care, and the record that lets you hold the manufacturer to warranty.
